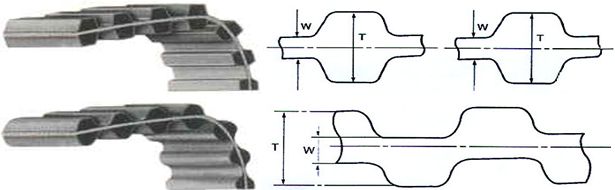

Double sided timing belt
Type |
W |
T |
D-MXL |
0.508 |
1.53 |
D-XL |
0.508 |
3.05 |
D-L |
0.762 |
4.58 |
D-H |
1.372 |
5.95 |
D-XH |
2.794 |
15.49 |
D-XXH |
3.048 |
22.11 |
D-T2.5 |
0.60 |
2.00 |
D-T5 |
1.00 |
3.40 |
D-T10 |
2.00 |
7.00 |
D-T20 |
3.00 |
13.00 |
D-AT10 |
2.00 |
7.00 |
HTD-DA -3M |
0.760 |
3.10 |
HTD-DA -5M |
1.143 |
5.26 |
HTD-DA -8M |
1.372 |
8.17 |
HTD-DA -14M |
2.80 |
14.84 |
STD-DA-S 8M |
1.372 |
7.48 |
Type |
Section length |
Teeth |
196XL~1970XL |
497.84~5003.8 |
98~985 |
203L ~ 1988L |
514.35~5048.25 |
54~530 |
670H~2500H |
1701.8~6350 |
124~500 |
700XH~2275XH |
1778.00~5778.5 |
80~260 |
700XXH~2625XXH |
1778.00~6667.5 |
56~210 |
T2.5x500~T2.5x5000 |
500.00~5000.00 |
200~2000 |
T5x500~T5x7000 |
500.00~7000.00 |
100~1400 |
T10x500~T10x7050 |
500.00~7050.00 |
50~705 |
T20x1700~T20x7000 |
1700.00~7000.00 |
85~350 |
AT10x500~AT10x7000 |
500.00~7000.00 |
50~700 |
501 -3M~5010 -3M |
501.00~5010.00 |
167~1670 |
500 -5M~7000~ 5M |
500.00~7000.00 |
50~1400 |
512 -8M~6880 -8M |
512.00~6880.00 |
64~860 |
1750 -14M~6860 -14M |
1750.00~6860.00 |
125~490 |
512-S 8M~6880-S 8M |
512.00~6880.00 |
64~860 |
Model |
Pitch P |
With High hs |
Tooth Height ht |
XL |
5.080 |
2.30 |
1.27 |
L |
9.525 |
3.60 |
1.91 |
H |
12.700 |
4.30 |
2.29 |
XH |
22.225 |
11.20 |
6.35 |
5M |
5 |
3.8 |
2.06 |
8M |
8 |
6.0 |
3.36 |
14M |
14 |
10.0 |
6.02 |
S 5M |
5 |
3.40 |
1.91 |
S 8M |
8 |
5.30 |
3.05 |
S 14M |
14 |
10.20 |
5.30 |
T5 |
5 |
2.2 |
1.20 |
T10 |
10 |
4.5 |
2.50 |
T20 |
20 |
8.0 |
5.00 |
AT5 |
5 |
2.7 |
1.20 |
AT10 |
10 |
5.0 |
2.50 |
