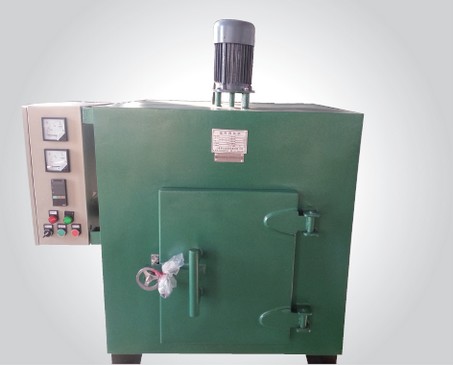

Preheat & Insulation Furnace is mainly used for preheating and heat preservation of spinning parts, such as spinning meter pump, spinning finish pump, spin pack, spinneret and so on. It has the advantages of small floor area, short heating time, and energy-saving and high precision temperature control.

Technical Specification

The outer frame of Preheating & Insulation Furnace is made by welding the profiled bar; the lateral plate in the working room is stainless steel plate; the gap between the working room and outer wall is filled with fine quality aluminum silicate wool to carry out insulation and heat preservation. Also Pre-heating & Insulation can be mounted with universal mobile wheels to easily move around in the workshop.

In addition, it has separate control system, the heating component is installed in the inside, and the heat generated by the heating elements acts on the components inside the working room through the heat radiation function to warm-up the components.

Hereafter some dimension is listed. We provide any dimension as requested.

	Model	Dimension	V/KW	℃	precision ℃
Box pre-heat furnace	RXL-1-1	450×550×500	380/8	0-400	±1
	RXL-1-2	500×600×750	380/10	0-400	±1
	RXL-1-3	800×800×1000	380/15	0-400	±1
	RXL-1-4	800×1000×1000	380/18	0-400	±1
Horizontal pre-heat furnace	RXL-2-1	1200×600×250	380/12	0-400	±1
	RXL-2-2	1600×600×250	380/15	0-400	±1
	RXL-2-3	1800×700×550	380/18	0-400	±1
	RXL-2-4	2000×800×550	380/21	0-400	±1
Pre-heat truck	RXL-3-1	600×500×250	380/6	0-400	±1
	RXL-3-2	700×600×250	380/6	0-400	±1
	RXL-3-3	900×600×250	380/9	0-400	±1
	RXL-3-4	1000×600×250	380/9	0-400	±1
Tank pre-heat furnace	RXL-4-1	φ290×230	380/3	0-400	±1
	RXL-4-2	φ360×400	380/6	0-400	±1
	RXL-4-3	φ450×450	380/9	0-400	±1
	RXL-4-4	φ520×450	380/12	0-400	±1
