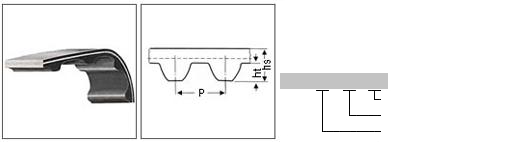

Trapezoidal tooth timing belt

Futai supplies quality all types of belts for textile machines, by cooperating with a leading belt maker in the heart of textile machine industry, who has over 20 years experiences of belt manufacturing, especially concentrating its products to all types of textile machines. Let Futai help you improve your machines operation conditions in order to reduce your broken down time, increase your machines running efficiently and save your cost.

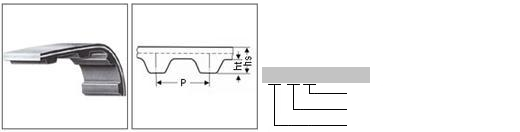

Size designation

300 L 075

0.75"=19.1mm belt width

3/8"=9.525mm tooth pitch

30"=762.0mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
MXL	2.032	1.14	0.51
XXL	3.175	1.52	0.76
XL	5.080	2.30	1.27
L	9.525	3.60	1.91
H	12.70	4.30	2.29
XH	22.225	11.20	6.35
XXH	31.750	15.70	9.53

Size designation

STD 960-S8M-50

50mm belt width

8mm tooth pitch

960mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
T2.5	2.5	1.30	0.70
T5	5	2.20	1.20
T10	10	4.50	2.50
T20	20	8.00	5.00

Size designation

AT10×960×50

50mm belt width

960mm tooth pitch

10mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
AT5	5	2.70	1.20
AT10	10	5.00	2.50

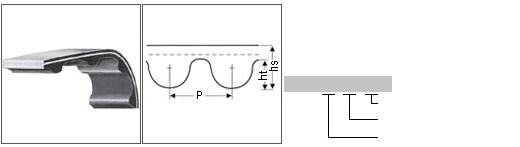

HTD Arc tooth timing belt

Size designation

HTD 960-8M-50

50mm belt width

8mm tooth pitch

960mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
3M	3	2.40	1.17
5M	5	3.80	2.06
8M	8	6.00	3.36
14M	14	10.00	6.02
20M	20	13.20	9.00

STD Arc tooth timing belt

Size designation

STD 960-S8M-50

50mm belt width

8mm tooth pitch

960mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
S 2M	2	1.36	0.76
S 3M	3	1.90	1.14
S 4.5M	4.5	2.81	1.71
S 5M	5	3.40	1.91
S 8M	8	5.30	3.05
S 14M	14	10.20	5.30

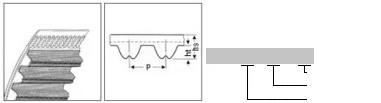

RPP Arc tooth timing belt

Size designation

RPP 960-P8M-50

50mm belt width

8mm tooth pitch

960mm pitch length

Type	Pitch P	Belt Thickness hs	Tooth Height ht
P 3M	3	1.90	1.15
P 5M	5	3.50	1.95
P 8M	8	5.50	3.20
P 14M	14	10.00	6.00
