FT series false twist bearings & assemblies

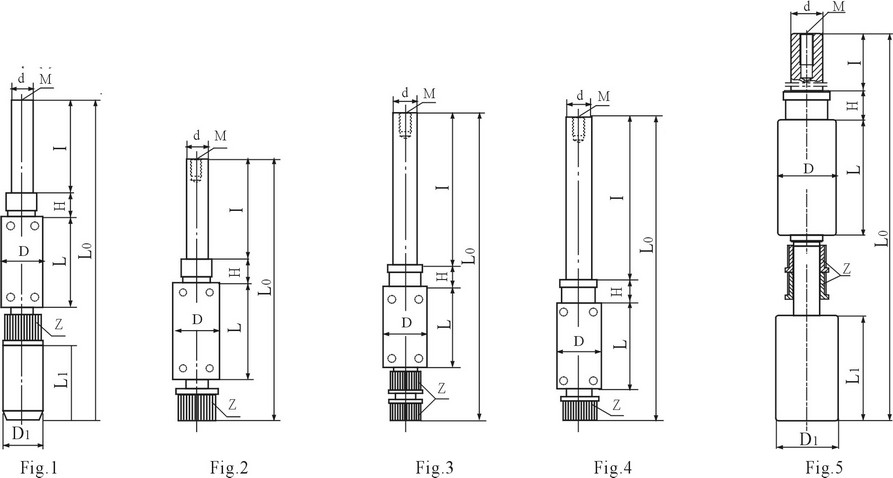

TYPE	D	d	D1	M	Z	H	I	L	L1	L0	MACHINE	PART NO.	REMARK
FT2452-N1	24	1 2	22.05	M5	31	13	74.25	52	47	209	FTF800 FTF8E3	FT 106089A	Fig.1
FT 2452-N2					31		74.25			159.65	FTF800 FTF8E3	FT 106091A	Fig.2
FT 2452-N 1A			28		26		68		47	208.5	IVF901		Fig.1
FT 2452-N 2A					26		68			154	IVF901		Fig.2
FT 2452-N1B			22		31	13.5	54		42	182.7	FTF12E3		Fig.1
FT 2452-N2B					31	13.5	54			1 41.5	FTF12E3		Fig.2
FT 2652-N1	26	14.45		M6	19	13	97.5			1 95.8		FT 016186A (VFT016184)	Fig.3
FT 2652-N2	26	14.45			19		97.5			180		FT01 61 87A (VFT016185)	Fig.4
FT 2452N-N1	24	12	38		20		68		52	205			Fig.1
FT 2452N-N2		12			20		68			154			Fig.2
FT 2652B-N1		14.45	28		28		97.5		47	246			Fig.5
FT 2652B-N2										178.8			Fig.4
FT 2652B-N 2A										191			Fig.4
FT 2452D-N1		12	38	M5	20		87		45	223.5			Fig.1
FT 2452D-N2				M5	20		87			173			Fig.2
FT 2452E-N1			25		26	13.5	67.5		47	208.5			Fig.1
FT 2452E-N2					26	13.5	67.5			154			Fig.2
FT 2452G-N1			22	M5	31	13	73.95		42	203.5			Fig.1
FT 2452G-N2				M5	31		73.95			162			Fig.2
FT 2452M-N1			28	M6	28		55		47	203.5			Fig.5
FT 2452M-N2										136			Fig.2
FT 2452M-N 2A										148			Fig.2

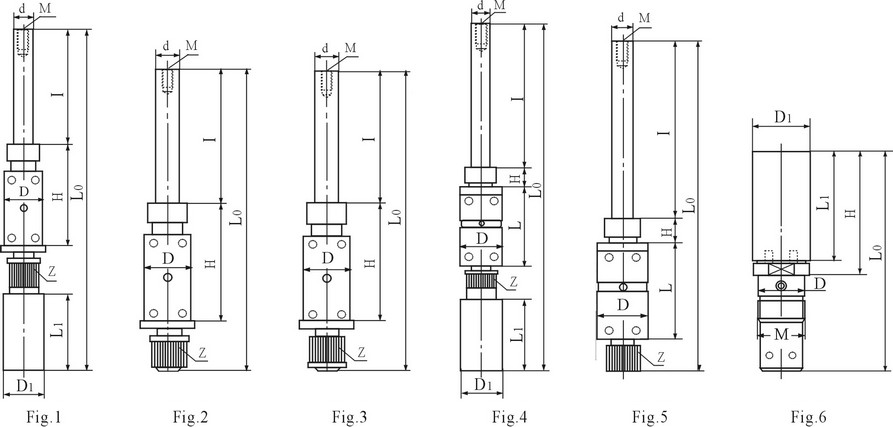

TYPE	D	d	D 1	M	Z	H	I	L	L1	L 0	MACHINE	PART N O .	REMARK
FT2447-N1	24	12	25	M5	26	59	67.5		48.5	200	TG20,TG30	0033442	Fig.1
FT2447-N2										146		0029812	Fig.2
FT2447-N 2A										146		0029813	Fig.3
FT2850-N1	28		28		20	12.5	90.5	49.5	45	218.5	FK6900		Fig.4
FT2850-N2	28				20	12.5		49.5	45	169			Fig.5
FTY2554-N3	21		25	M21x1		50.7			44.5	89.5			Fig.6
FT2850B-N1	28	12	28	M5	20	12.5		49.5	45	218.5			Fig.4
FT2850B-N2	28	12		M5	20	12.5		49.5	45	169			Fig.5
