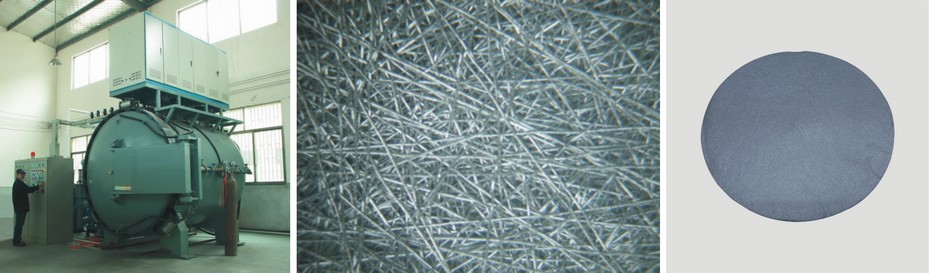

Porous metallic fiber web- high filtering precision



Equipment
Web
Sintered fibers
A web is a composition of fine micron metal fibers, which have metal tenacity and its strength, by uniformly lapping, laminating and sintering in high temperature to form a porous 3-dimensional non-woven web. It is combined with woven mesh at one or both sides to increase the strength, protect the fibers. This extremely porous metallic fiber fabric is also available with single layer formation, or multi-layers structure with coarse fibers to fine ones or the reverse, which allows high dirt holding capacity.

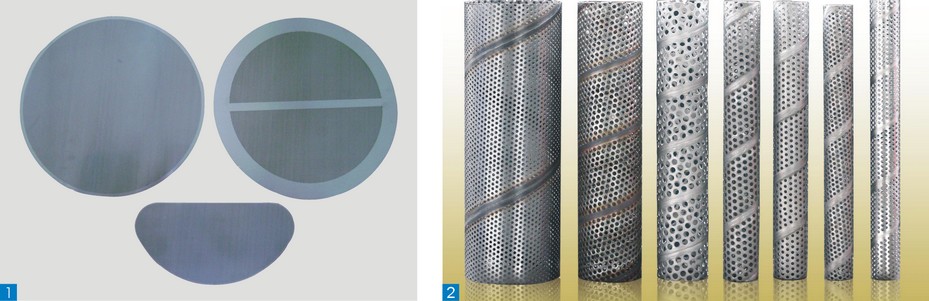

Etched photo film[1]
This allows polymer to flow even to every hole of spinnerets and improve quality of filtration by holding fine particles. This product can extend the cleaning period of spinneret and increase its lifespan. We can offer you a wide range of diameter by different shapes.
Metal pipe- framework of candle filters[2]
We can provide you with the complete specifications in the material of stainless steel 304 and 316.
