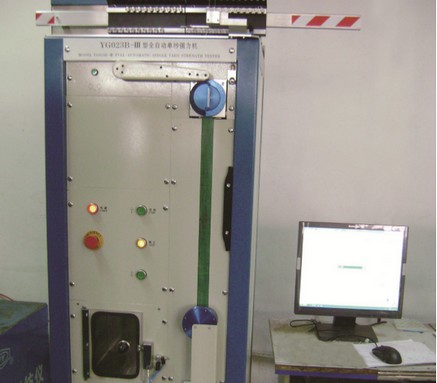

YG023B Automatic Yarn Tensile Tester
YG023B automatic yarn Tensile tester, which is controlled by PC, is used for determining the physical characteristics of yarn or filament, such as breaking force, elongation at break, breaking tenacity, time-to-break and forceelongation curve. The tester is integrated with a PC that is equipped with Windows operating system, color display, keyboard, mouse and printer, so that data acquisition, calculation and output are fully automatic.
By gripping specimen with pneumatic means, the drawoff clamps of the tester work reliably without any damage to specimen. The tester features high automation, convenient operation, stable performance and accurate testing. It is a high-tech electromechanical product at the world level among its counterparts
Technical Specifications
| Type | constant rate of elongation (CRE) |
| Load range | 0~5000 cN (range scaled at 2500 cN, 1000 cN) |
| Accuracy of load indication | ≤±1% |
| Gauge length & accuracy | (100~500)mm (infinitely adjustable) Accuracy 1 mm |
| Measurement range of elongation | (0~300) mm(gauge length = 500mm） |
| Test speed | (20~10000) mm/min (infinitely variable speed) Accuracy 2% |
| Pretension | (0~150) cN |
| Clamping mode | Pneumatic clamping pressure: (0.4~0.8) Mpa |
| Max number of tests per package | 300 |
| Data input | Input by keyboard or mouse |
| Data output |
Output data including: breaking force, elongation at break, breaking tenacity, time-to-break, work done, elongation at specified force, force at specified elongation, as well as max., min., mean and CV% in statistical block |
| Display:CTR color display (force, elongation, force-elongation curve) | |
| Printout:single test value, statistic values and force-elongation curve of test data | |
| Mains supply | Voltage: 220V Frequency: 50Hz Power: 1.2KW |
| Weight | 300 kg |
| Working environment requirements | Temperature (20±5) oC Humidity <80%RH |
| Overall dimensions (L x W x H) | Main unit: 650x580x1730mm (excluding display) |
| Yarn creel: 1200mm × 160mm × 500mm | |
| Air compressor: 650mm × 370mm × 500mm (Optional at order) |
Functions for abnormal value elimination, timed drawing, data save and query.
