Spinning pump and oil pump for spinning machine

Spinning pumps are high precision gear metering pump in round or rectangular shape for the production of synthetic fiber filament, staple fiber, carpet yarn, tire cord made from PET, PA6/66, PP, etc.

High precision gear metering oil pumps for the application of oil, lubricants and preserving agents in spraying system, optionally available with pipe-fittings, gear-motor unit and inverter.

Here just only 2 types are listed. For more information, please contact us.

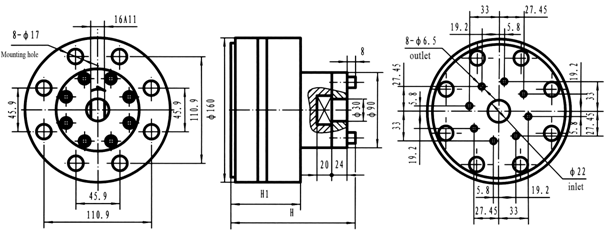

8 Outlet Spinning Pump
Main application: spinning process of the filament of POY and FDY
Number of inlet ports: l
Number of outlet ports: 8
Outlet pressure: 50MPa
Speed range: l0-40rpm
Max differential pressure: 40MPa
Operation temperature: ＜350℃
Cleaning temperature: ＜450℃


COMPUTER NUMBER
TYPE
CAPACITY PER PORT (cc/rev)
DIMENSION(mm)
H1
H
F3024801
FTB8X2.4 - 160
2.4
88.3
163.3
F3030801
FTB8X3.0 - 160
3.0
90
165
F3035801
FTB8X3.5 - 160
3.5
91.6
166.6
F3036801
FTB8X3.6 - 160
3.6
92
167
F3040801
FTB8X4.0 - 160
4.0
93.2
168.2
F3045801
FTB8X4.5 - 160
4.5
94.8
169.8
F3055801
FTB8X5.5 - 160
5.5
98.2
173.2

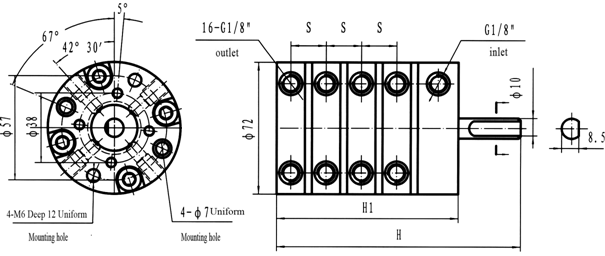

16 Outlet Oil Pump
Number of inlet ports: l
Number of outlet ports: 16
Speed range: l0-60rpm
Operation temperature: ＜50℃


COMPUTER NUMBER
TYPE
CAPACITY PER PORT (cc/rev)
DIMENSION(mm)
S
H1
H
FY00081601
FYB16×0.08
0.08
15.4
84 6
112
FY00101601
FYB16×0.10
0.10
15.6
85 4
113
FY00121601
FYB16×0.12
0.12
15.9
867
114
FY00151601
FYB16×0.15
0.15
16.4
88 6
116
FY00201601
FYB16×0.20
0.20
17.2
91.8
119
FY00301601
FYB16×0.30
0.30
18.8
98.2
126
