Furnace for spin pack
It is mainly used to clean spinneret, spin pack in synthetic fiber industry.
The disassembly and assembly bench, hydraulic and screw type, is provided, As well we can tailor-made according to your requirements.
The outside wall of the furnace is made from steel and internal wall from refractory stainless steel, high quality silicic acid aluminium cotton is stuffed between the outside wall and work tank for thermal insulation. Stainless steel U-Shaped heater tubes are installed on both sides of the furnace and adjustable air exhausting vent on the top. Cradles are put inside of the furnace according to customers requirements.

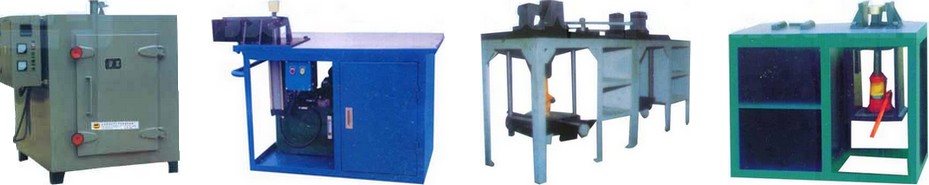

Furnace
Hydraulic Disassembly Bench
Assembly Bench for Spin Pack
Screw-type Disassembly Bench
The disassembly and assembly bench, hydraulic and screw type, is provided, As well we can tailor-made according to your requirements.
| Model |
Dimension |
V/KW |
Temperature |
| RX-1 |
450×550×500 |
380/8 |
0-600℃ |
| RX-2 |
500×600×750 |
380/12 |
0-600℃ |
| RX-3 |
800×800×1000 |
380/18 |
0-600℃ |
| RX-4 |
800×1000×1000 |
380/21 |
0-600℃ |
| RX-5 |
1000×1000×1200 |
380/27 |
0-600℃ |
The equipment is widely used for pre-heat and insulation of spinneret, spin pack, filter core,etc., as well for laboratory drying, baking and heat treatment.

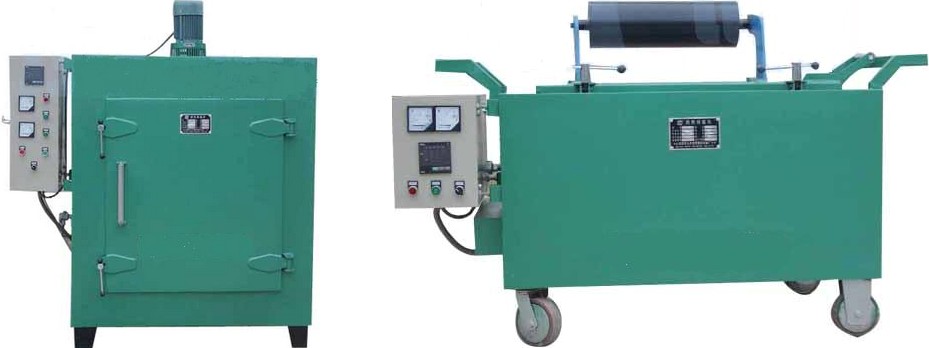

Pre-heat Furnace with Hot-air Circling Fan
Pre-heat Truck
The outside wall of the furnace is made from steel and internal wall from refractory stainless steel, high quality silicic acid aluminium cotton is stuffed between the outside wall and work tank for thermal insulation.
The box-style and horizontal pre-heat furnace can be equipped with a hot-air circling fan, which blow the heat generated from heater tube into the hearth to heat the parts.
Model |
Dimension |
V/KW |
℃ |
precision
℃ |
|
Box pre-heat furnace |
RXL-1-1 |
450×550×500 |
380/8 |
0-400 |
±1 |
RXL-1-2 |
500×600×750 |
380/10 |
0-400 |
±1 |
|
RXL-1-3 |
800×800×1000 |
380/15 |
0-400 |
±1 |
|
RXL-1-4 |
800×1000×1000 |
380/18 |
0-400 |
±1 |
|
Horizontal pre-heat furnace |
RXL-2-1 |
1200×600×250 |
380/12 |
0-400 |
±1 |
RXL-2-2 |
1600×600×250 |
380/15 |
0-400 |
±1 |
|
RXL-2-3 |
1800×700×550 |
380/18 |
0-400 |
±1 |
|
RXL-2-4 |
2000×800×550 |
380/21 |
0-400 |
±1 |
|
Pre-heat truck |
RXL-3-1 |
600×500×250 |
380/6 |
0-400 |
±1 |
RXL-3-2 |
700×600×250 |
380/6 |
0-400 |
±1 |
|
RXL-3-3 |
900×600×250 |
380/9 |
0-400 |
±1 |
|
RXL-3-4 |
1000×600×250 |
380/9 |
0-400 |
±1 |
|
Tank pre-heat furnace |
RXL-4-1 |
φ290×230 |
380/3 |
0-400 |
±1 |
RXL-4-2 |
φ360×400 |
380/6 |
0-400 |
±1 |
|
RXL-4-3 |
φ450×450 |
380/9 |
0-400 |
±1 |
|
RXL-4-4 |
φ520×450 |
380/12 |
0-400 |
±1 |
